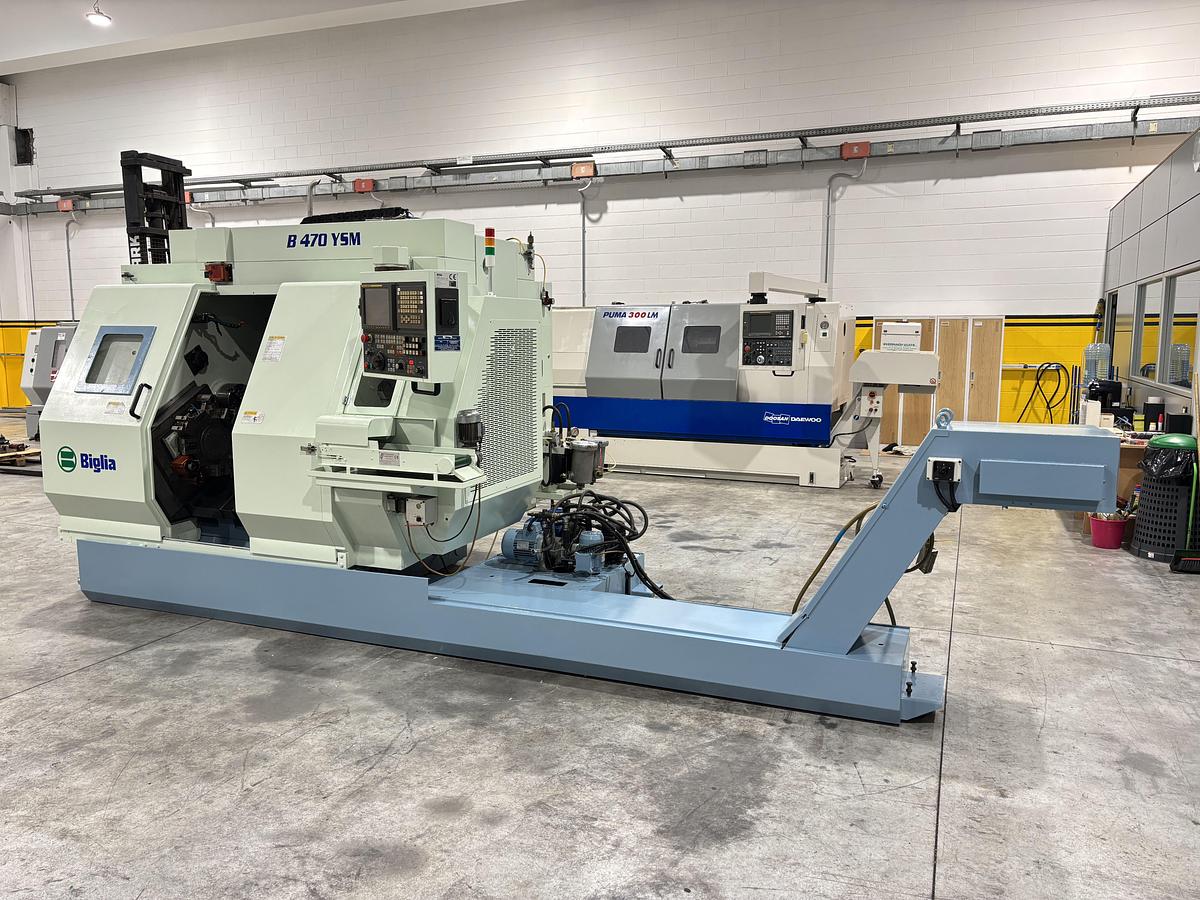

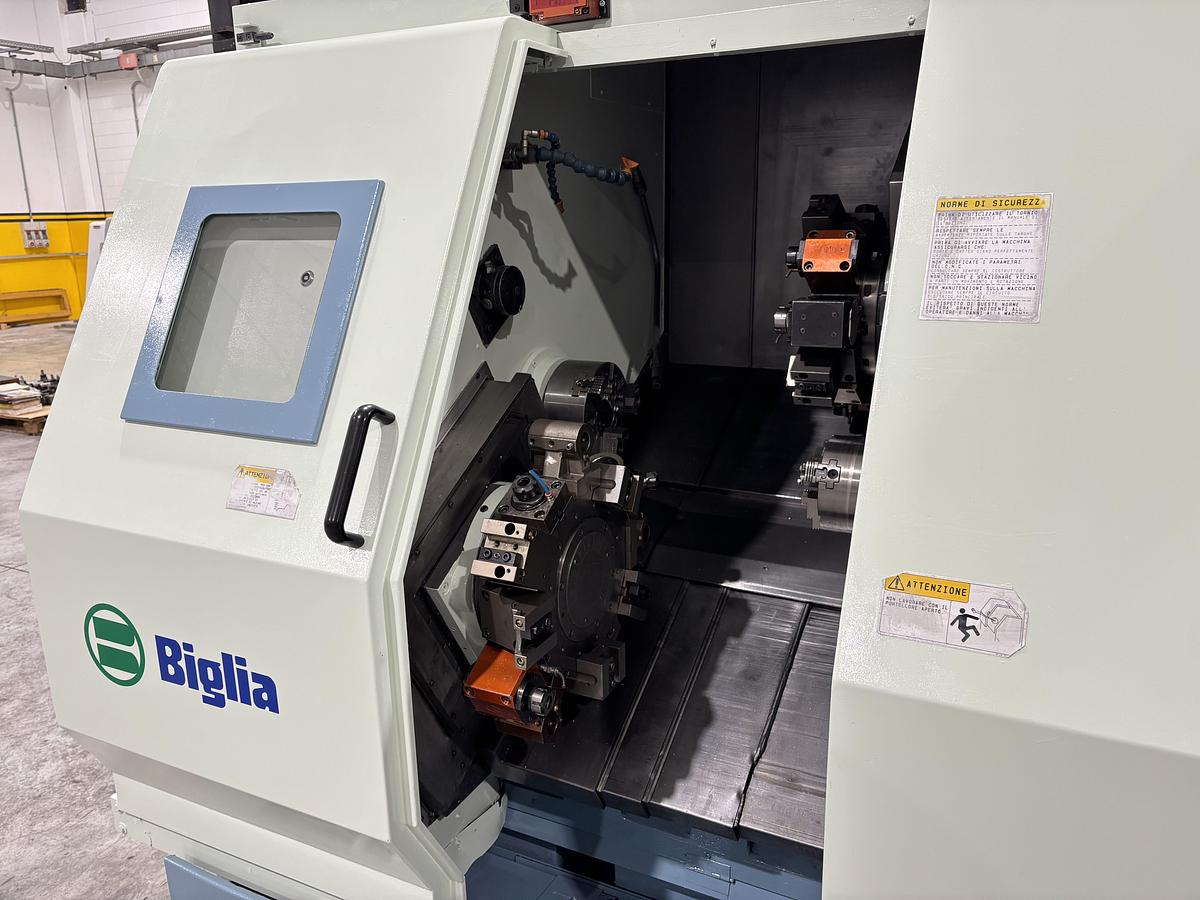

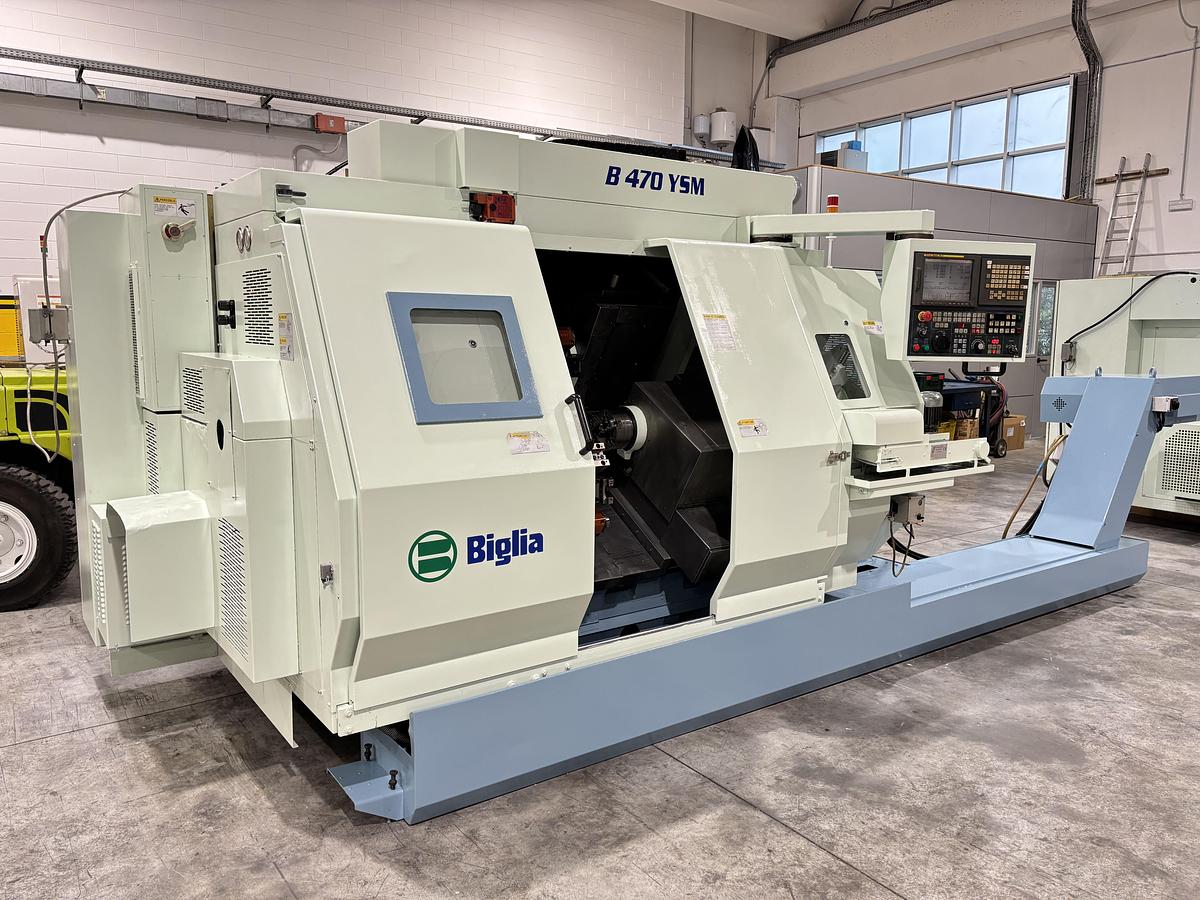

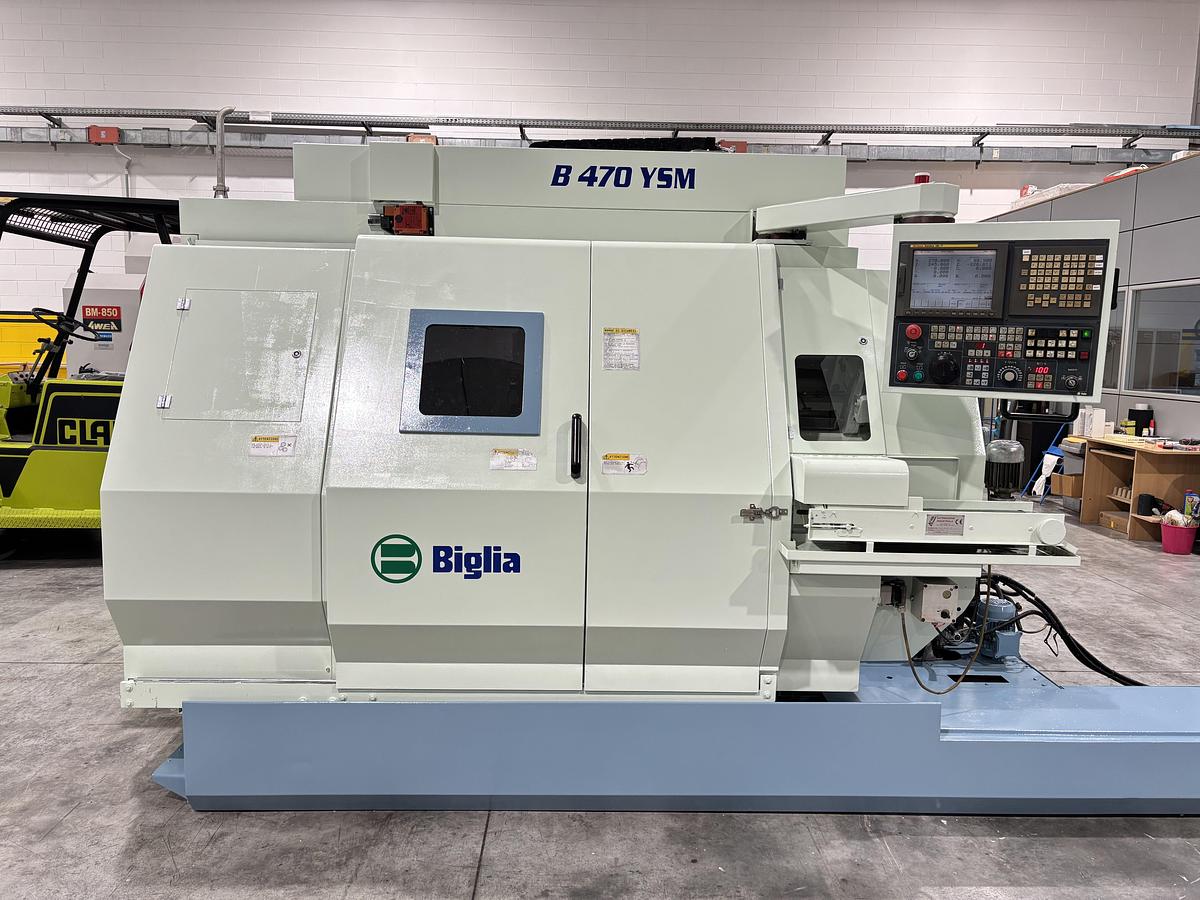

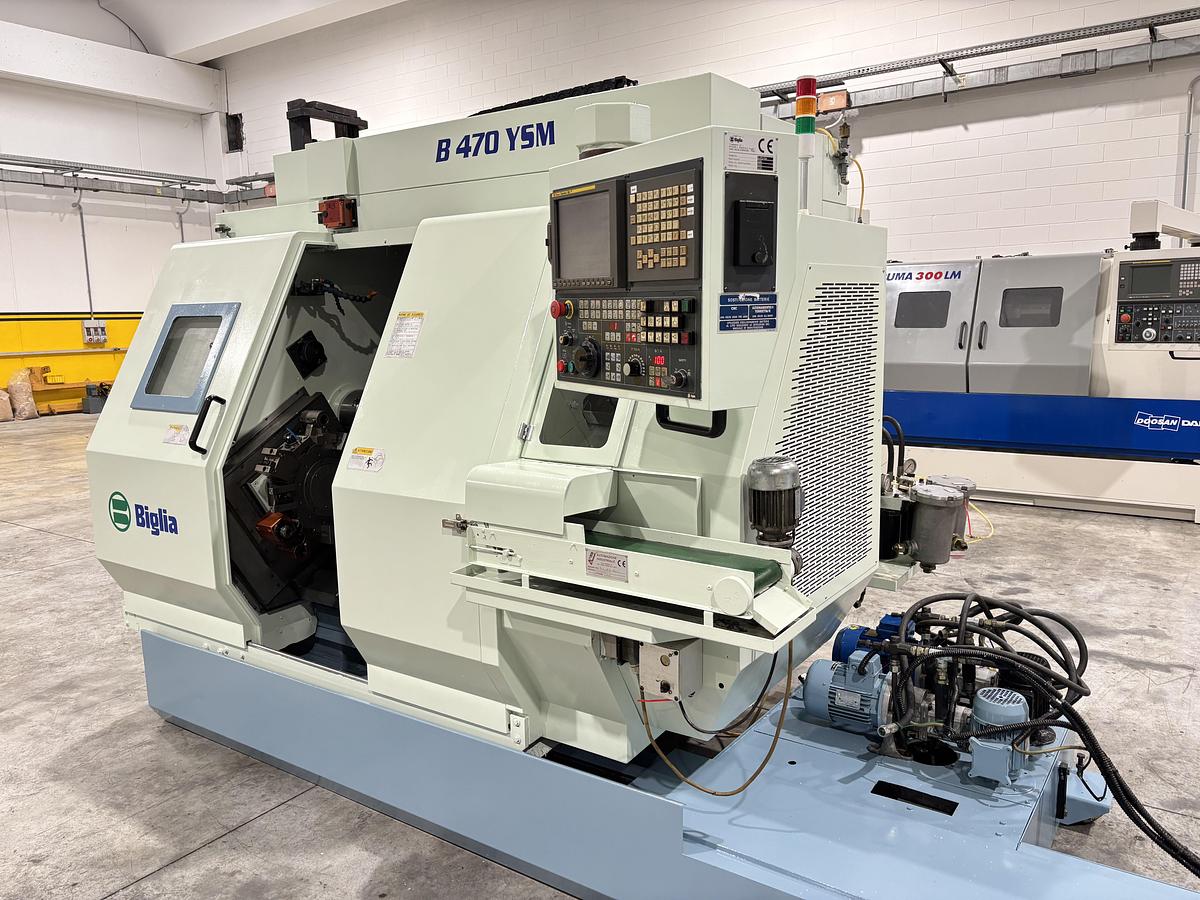

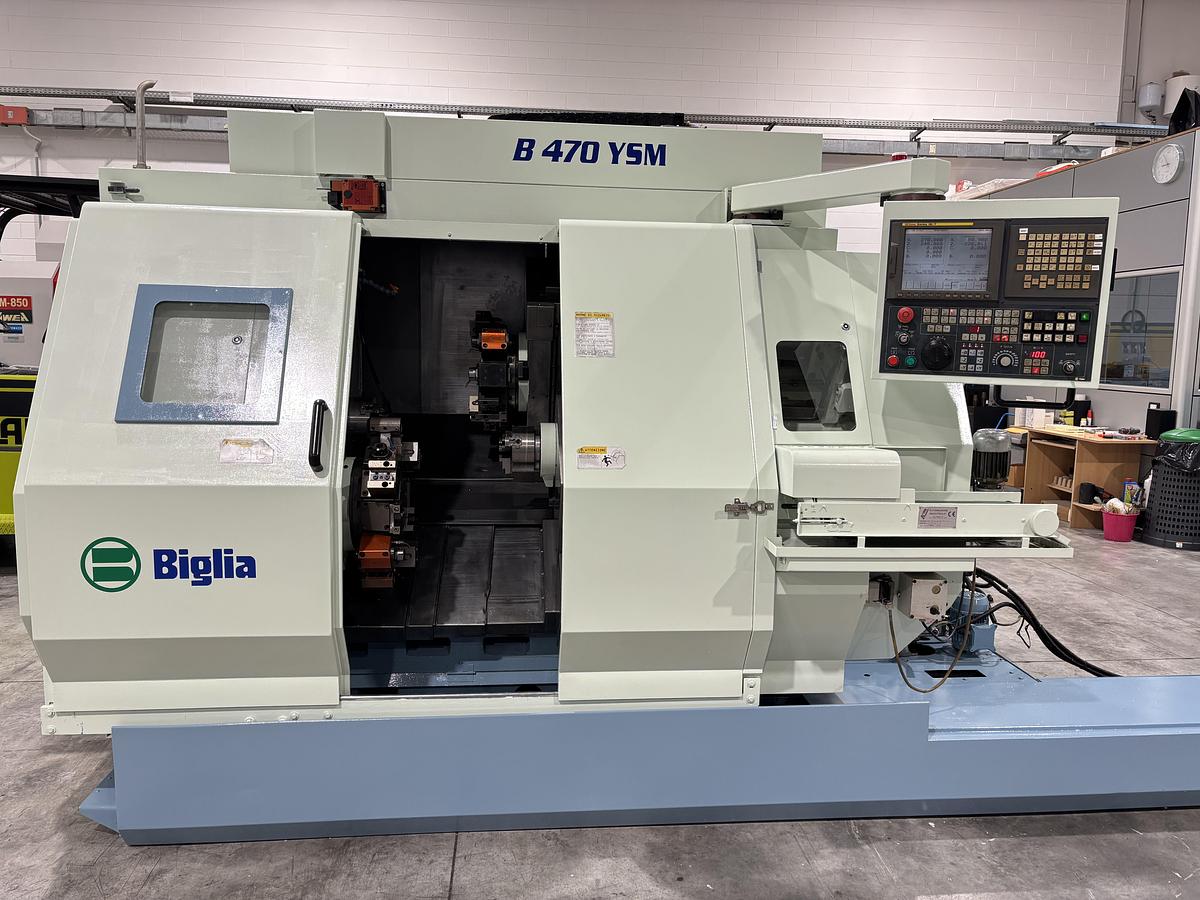

BIG-HEADED THREADING MACHINE B 470 YSM

BIG-HEADED THREADING MACHINE B 470 YSM

LATHE WITH SHAFT

COUNTER-SPINDLE

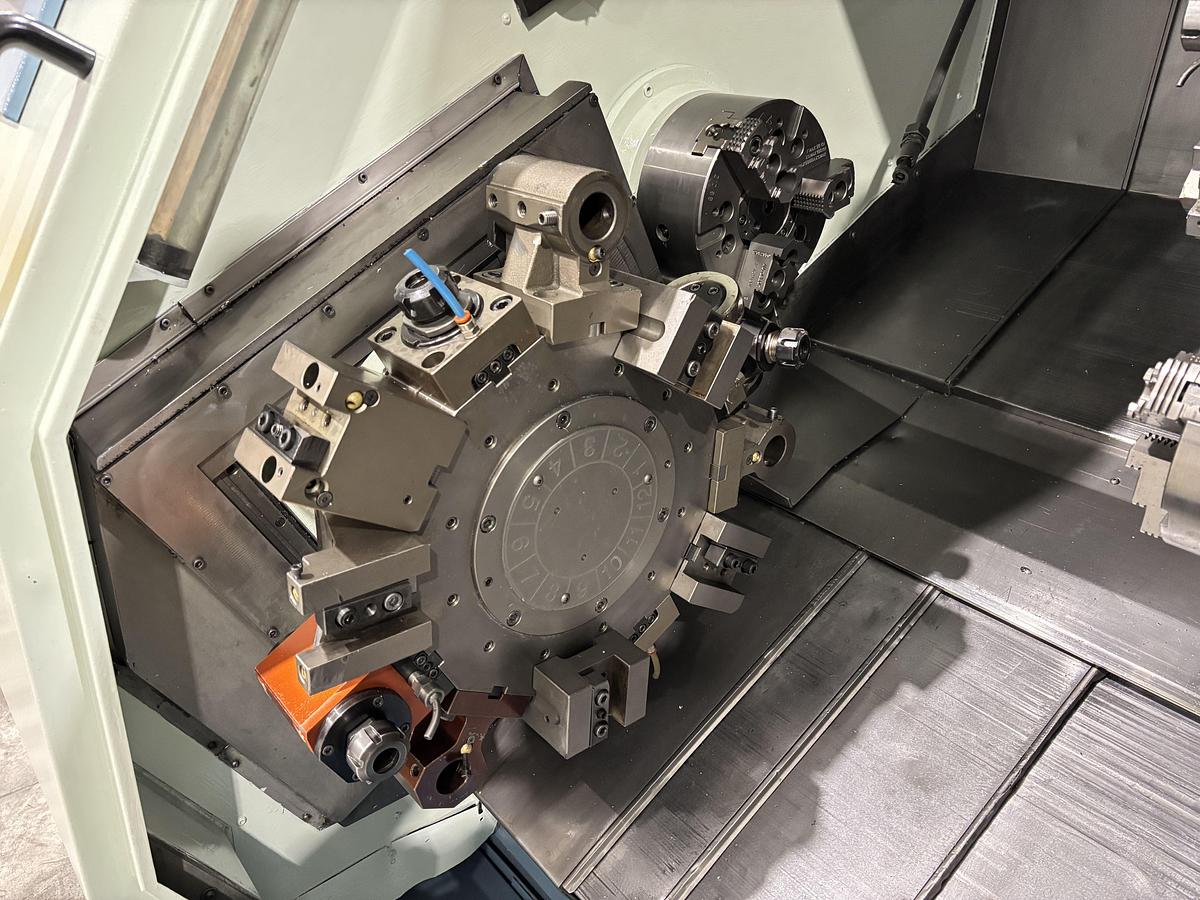

N.02 MOTORIZED TURRETS

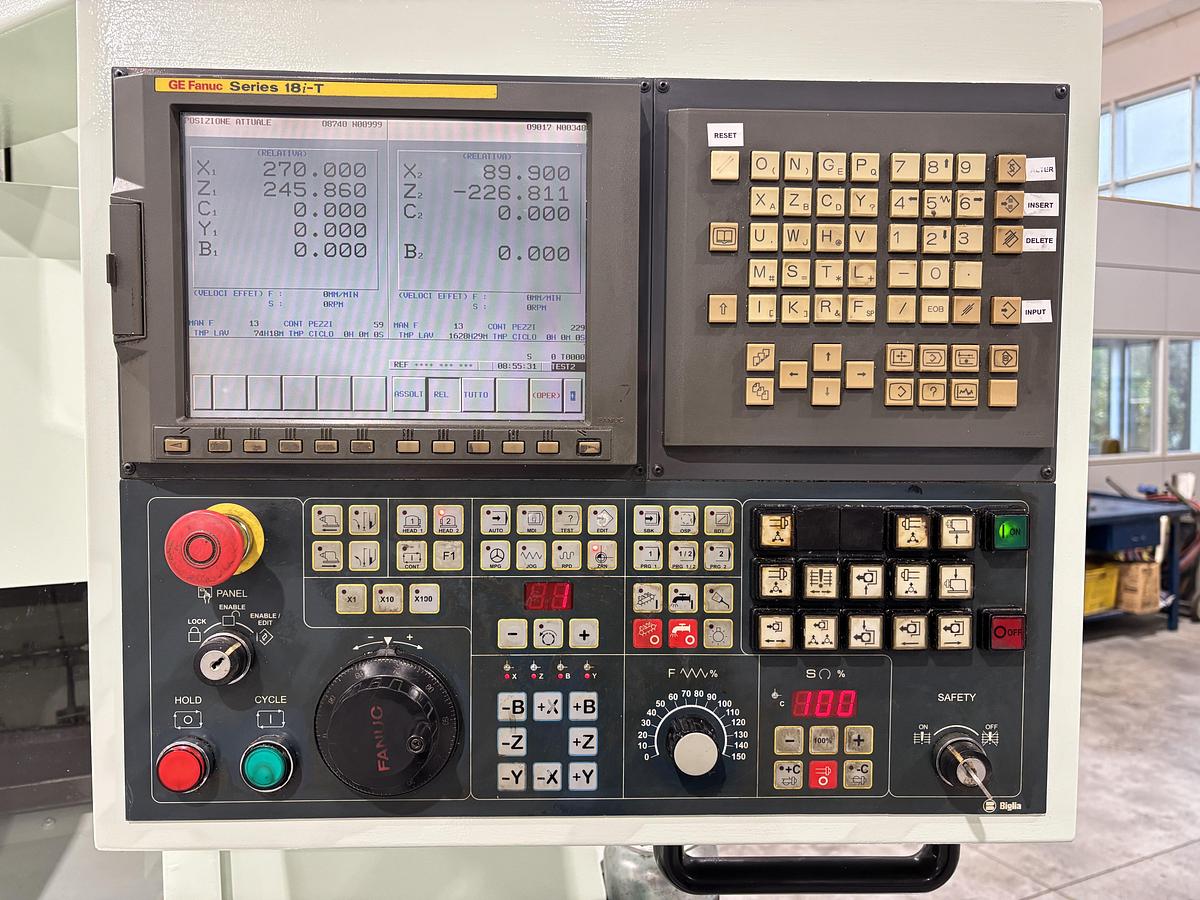

FANUC 18i-TB Numerical Control

CAPACITY:

Maximum barstock machinable diameter by chuck/tailstock mm 68/45

Maximum diameter that can be machined from spindle/gripper chuck 200/160 mm

Maximum working length spindle/sub spindle mm 300/200

Maximum rotating diameter spindle/chuck mm 200/160

Chuck bar passage mm 65

CHUCK: variable rotation spindle/chuck RPM 100-4000/100-4000

Spindle nose/ chuck ASA 6''/ASA 5'' Spindle/chuck hole mm 80/56 Spindle motor/chuck power (50%) kW 22-26/5.7-7.5 TOP/LOWER TOOLPOST: Number of motorized positions 12 Variable rotation range rpm 100-3000 Spindle motor power kW 1.1-3.7 (25%) AXES: X-axis travel spindle/chuck mm 160/158 Z-axis travel spindle/chuck mm 390/240 Y-axis travel spindle 100 (40-60) B axis chuck mm 420 C AXIS CONTROLLED: Minimum programmable value 0.001 degrees DIMENSIONS: Footprint with chip conveyor mm 4107x2128x2204h COMPLETE WITH: -Chip conveyor

Year before installation: 2004
