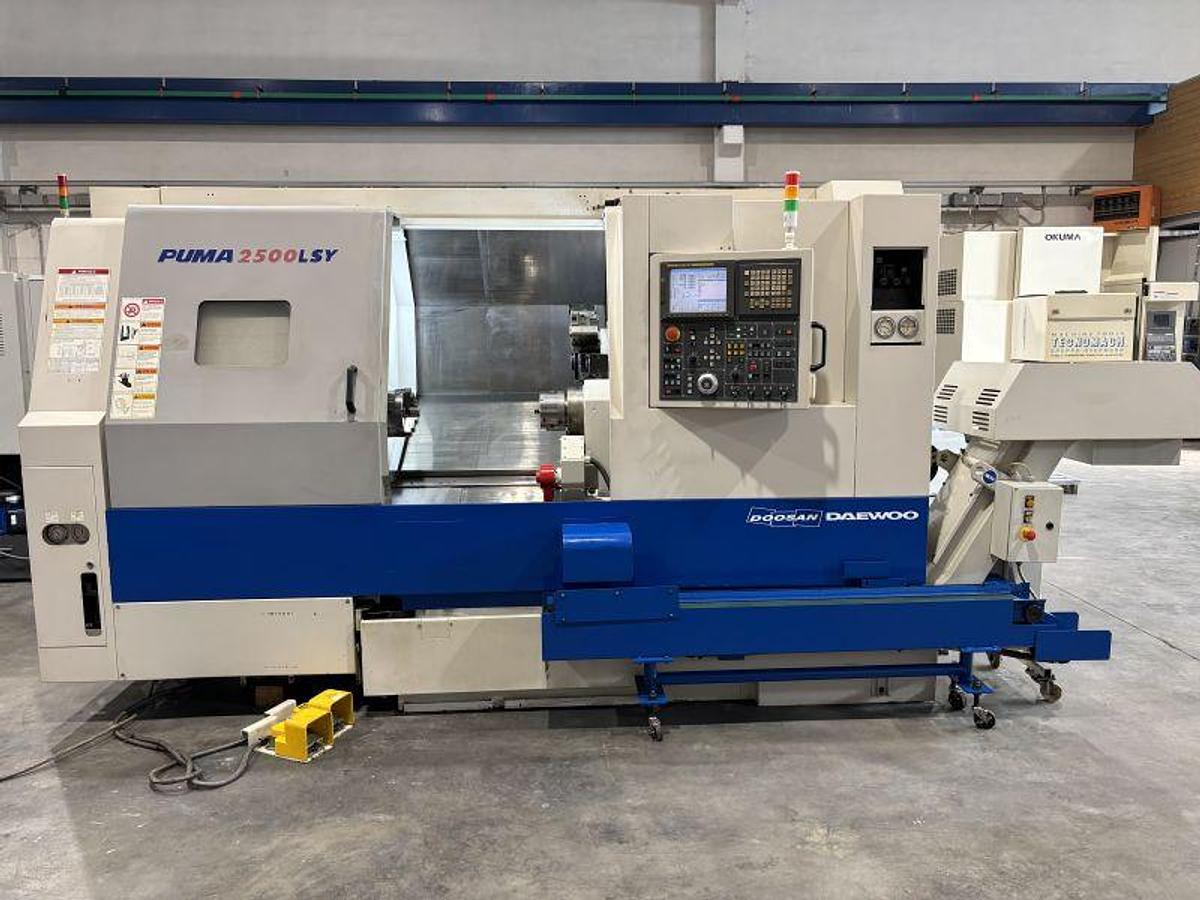

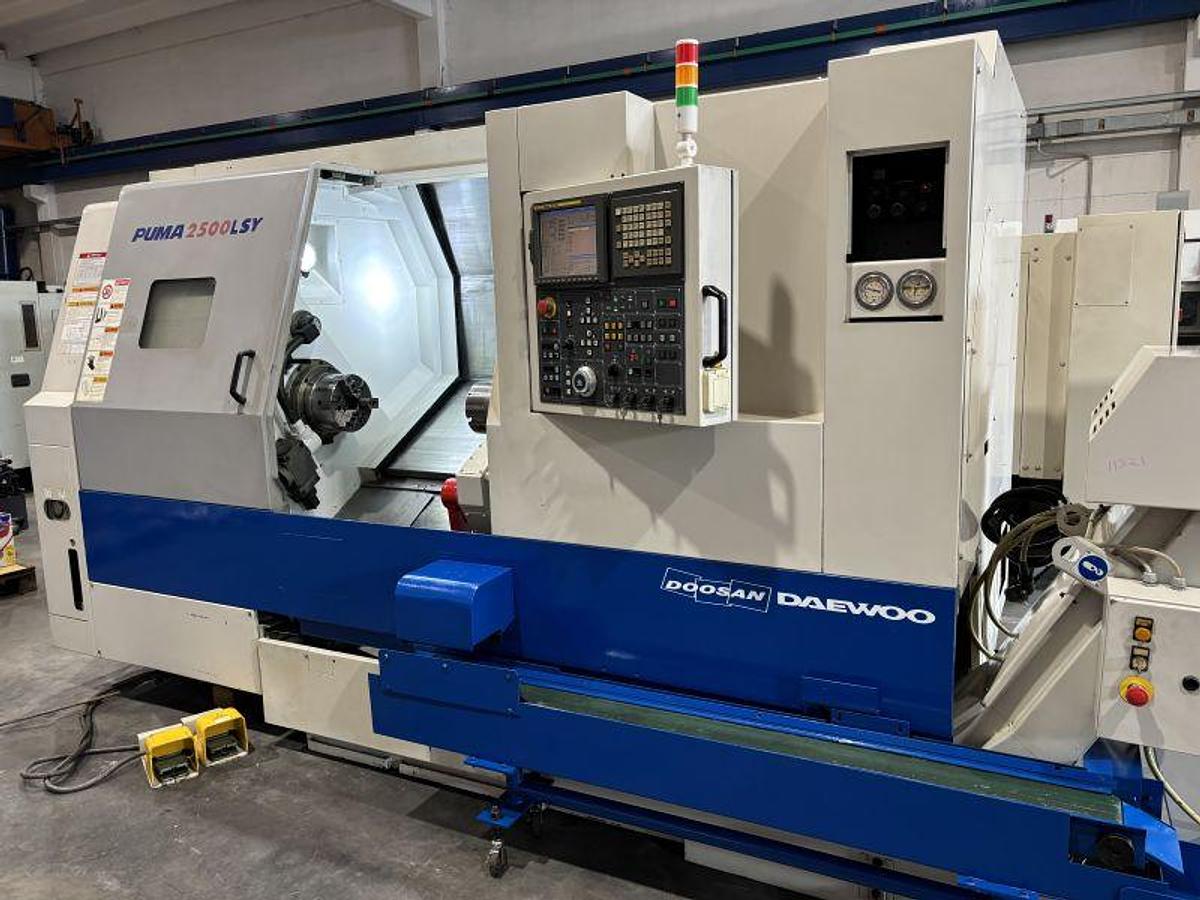

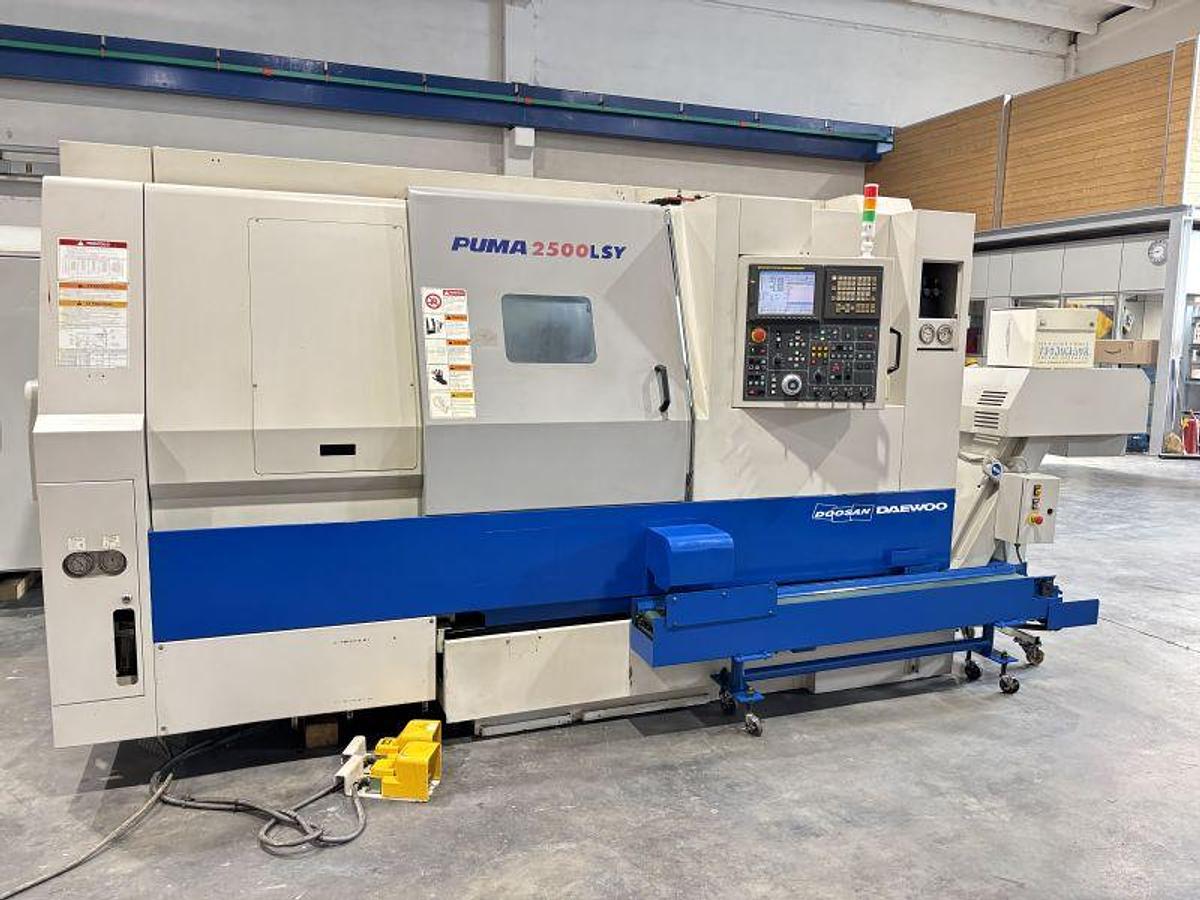

LATHE DAEWOO PUMA 2500 LSY CNC FANUC SERIES 18i-TB YEAR 2005

DAEWOO PUMA 2500 LSY LATHE

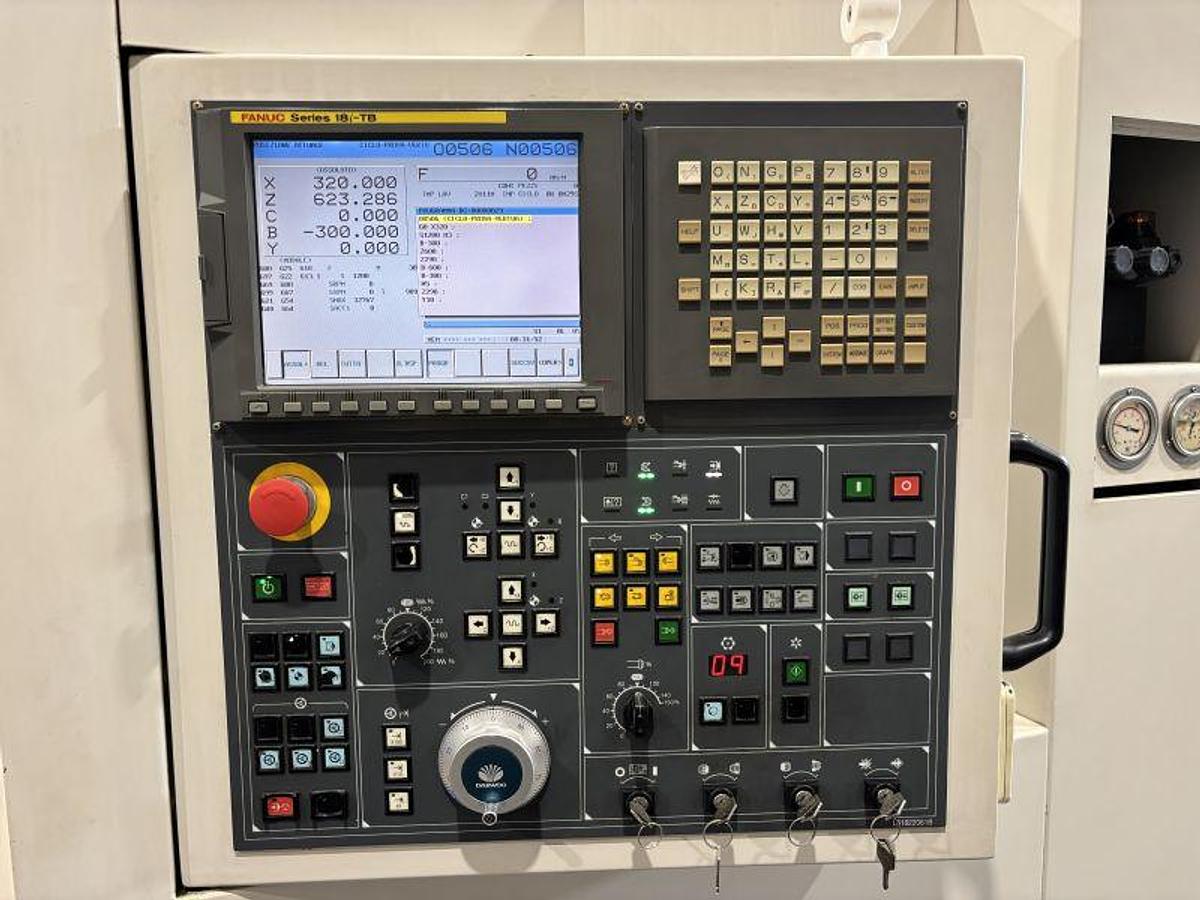

CONTROL UNIT: FANUC 18i-TB

CAPACITY' :

MAXIMUM TURNING DIAMETER: 330 mm

MAXIMUM TURNING LENGTH: 750 mm

MAIN SPINDLE BAR PASSAGE: 76 mm

SECONDARY SPINDLE BAR PASSAGE: 34 mm

MAIN SELF-CENTERING DIAMETER: 250 mm

SECONDARY SELF-CENTERING DIAMETER: 160 mm

CHUCK :

MAIN SPINDLE ROTATION SPEED: 3,500 RPM.

SECONDARY SPINDLE ROTATION SPEED: 6,000 RPM.

MAIN SPINDLE POWER: KW 15 – 22

SECONDARY SPINDLE POWER: KW 5.5 – 7.5

NOSE SPINDLE / COUNTER SPINDLE : ASA 8 / 5

RACE :

X / Z / B : 250 – 830 – 830 mm

Y : + / - 50 mm

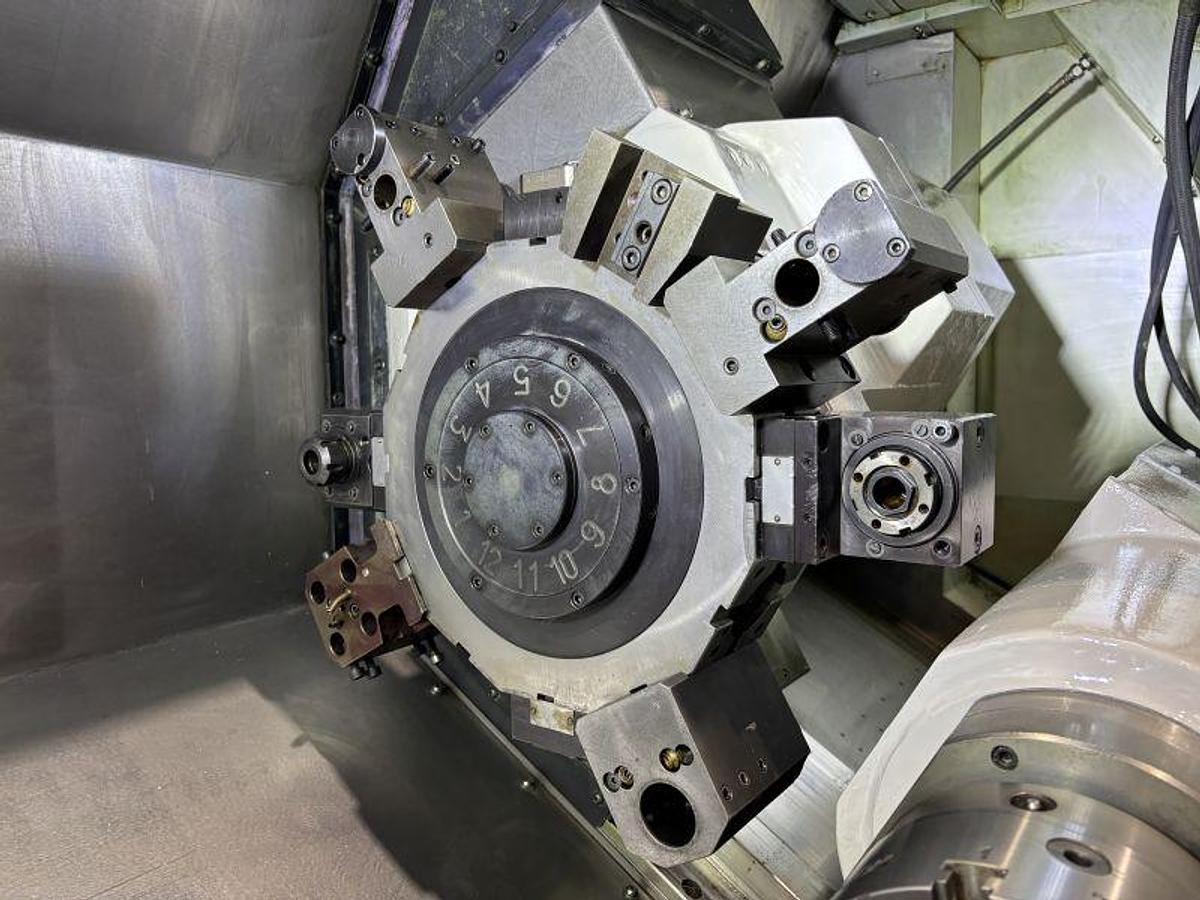

TURRET: 12 POSITIONS (ALL MOTORIZABLE)

INCLUDED: 2 AXIAL MOTORIZED + 2 RADIAL MOTORIZED

BELT CHIP CONVEYOR

HAND PICK UP PIECE

PREDISPOSITION

PIECE CONVEYOR BELT

BELLEGRANDI COLLET HOLDER MAIN SPINDLE + SECONDARY SPINDLE

COMPLETE WITH ALL DOCUMENTATION

WEIGHT: KG. 6.000

YEAR OF FIRST INSTALLATION: 2005
