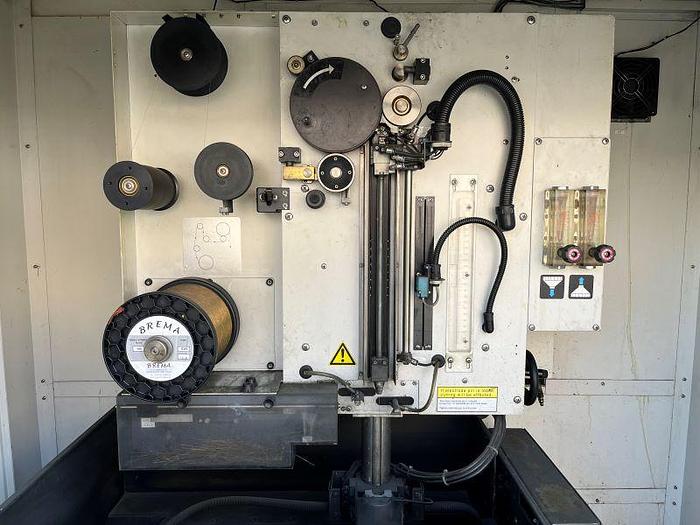

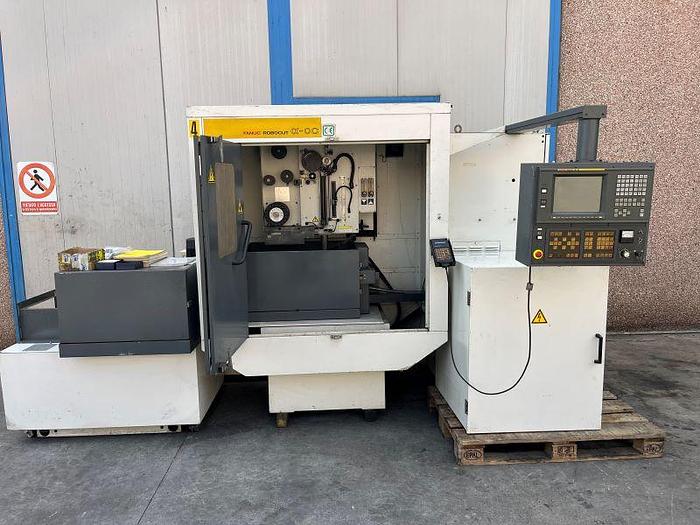

ELETTROEROSIONE A FILO FANUC ROBOCUT ALPHA 0C CNC FANUC SERIES 16-W
![Usato ELETTROEROSIONE A FILO FANUC ROBOCUT ALPHA 0C CNC FANUC SERIES 16-W](https://i.machineryhost.com/8c249675aea6c3cbd91661bbae767ff1/6039ab1661bd64edc0901bf9a156f698/large-usato-elettroerosione-a-filo-fanuc-robocut-alpha-0-c-cnc-fanuc-series-16-w.jpg)
ELETTROEROSIONE A FILO FANUC ROBOCUT ALPHA 0C CNC FANUC SERIES 16-W
Contattaci per il prezzo
Posizione:Brescia, Italia
oChiama +39 347 7479591
Descrizione
ELETTROEROSIONE A FILO FANUC ROBOCUT ALPHA 0C

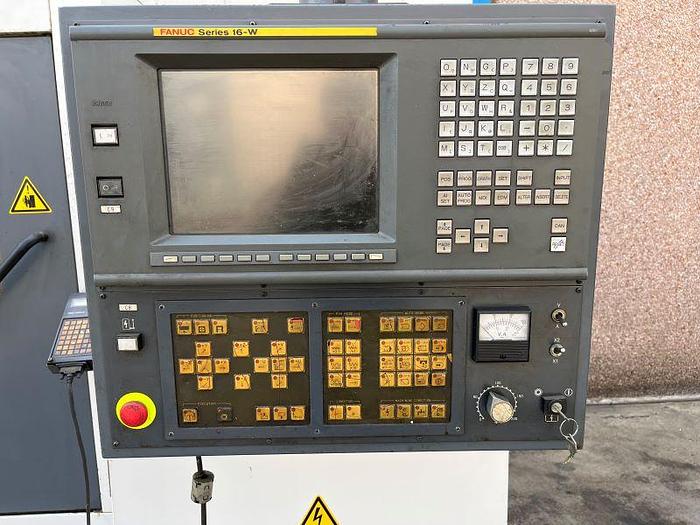

CNC SERIE FANUC 16-W
DATI TECNICI :
DIMENSIONI MAX. PEZZO :
LUNGHEZZA : 650 mm
LARGHEZZA : 420 mm
ALTEZZA : 180 mm
PESO MAX. SULLA TAVOLA : 250 KG.
CORSE :
X : 320 mm
Y : 220 mm
Z : 180 mm
U : 120 mm
V : 120 mm
AVANZAMENTI RAPIDI : 900 mm/min.
TAGLIO CONICO : +/- 30°
FILO DELL' ELETTRODO DA 0,1 mm FINO 0,30 mm
PESO MAX. BOBINA : 6 KG.
COMPLETA DI DOCUMENTAZIONE
ANNO PRIMA INSTALLAZIONE : 1998
Specifiche
Condizione | Usato |
