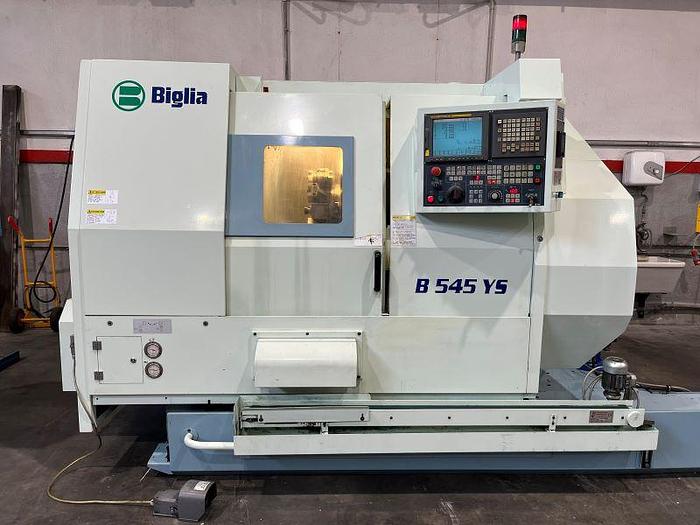

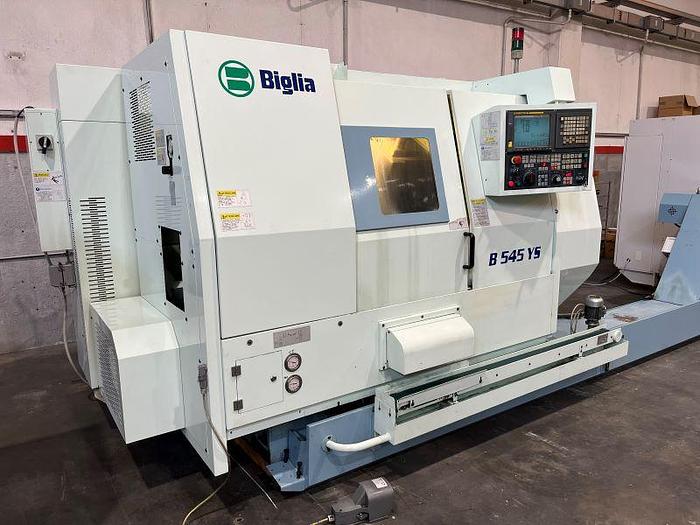

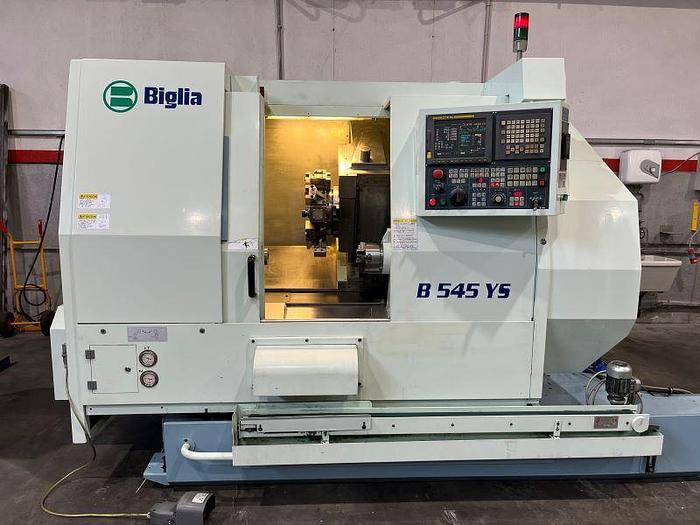

TORNIO BIGLIA B 545 YS ANNO 2008
TORNIO BIGLIA B 545 YS ANNO 2008
Brescia, Italia
Descrizione
TORNIO BIGLIA B 545 YS
ANNO PRIMA INSTALLAZIONE : 2008

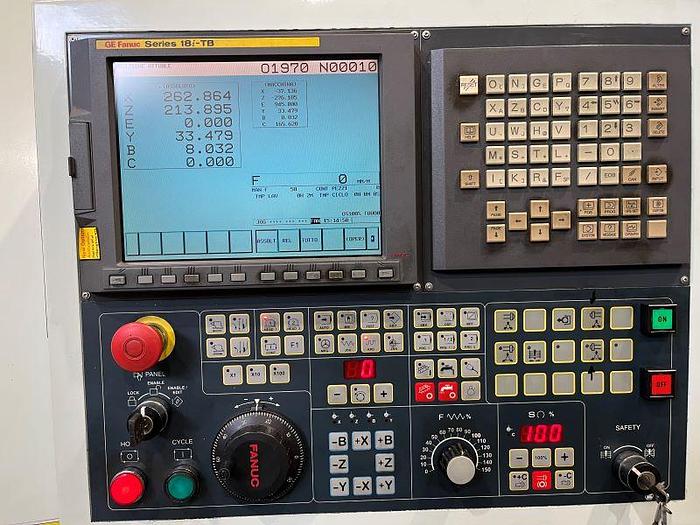

UNITA' DI GOVERNO : GE Fanuc Serie 18i-TB
CAMPO DI LAVORO
Max. Diam. Lavorabile da barra : 45 mm
Max. Diam. Lavorabile da ripresa : 220 mm
Max. Lunghezza lavorabile : 560 mm
Diametro massimo rotante: 400 mm
MANDRINO PRINCIPALE
Diametro Autocentrante : 210 mm
Velocità di rotazione max. : 5.000 Giri / Min.
Naso Mandrino : ASA 5
Foro Mandrino : 46 mm
Portapinza Bellegrandi
Potenza motore : 11 / 15 Kw
CONTROMANDRINO
Diametro Autocentrante : 165 mm
Velocità di rotazione max. : 5.000 Giri / Min.
Naso Mandrino : ASA 5
Foro Mandrino : 45 mm
Potenza motore : 7,5 / 11 Kw
TORRETTA
Numero posizioni : 12
Stelo utensile per esterno / interno : 20 x 20 – 25 x 25 – Diam. 32 mm
Tempo rotazione : (1 pos ) : sec 0,15
UTENSILI MOTORIZZATI
Numero posizioni : 12
Velocità di rotazione max. : 4.000 Giri / Min.
Potenza motore : Kw 3,7
ASSE C
Valore minimo programmabile : ° 0,001
Max. velocità rapida : 100 Giri / Min.
CORSICA
X : 170 mm
Z : 560 mm
Y : + 55 / - 50 mm
B : 490 millimetri
PESO : KG. 5.000
DOTAZIONI MACCHINA :
TASTATORE ELETTRONICO
NASTRINO FRONTALE
MONITORAGGIO
AUTOSPEGNIMENTO
N° 6 MOTORIZZATI INCLUSI 2 RADIALI E 4 ASSIALI
Specifiche
Condizione | Usato |
